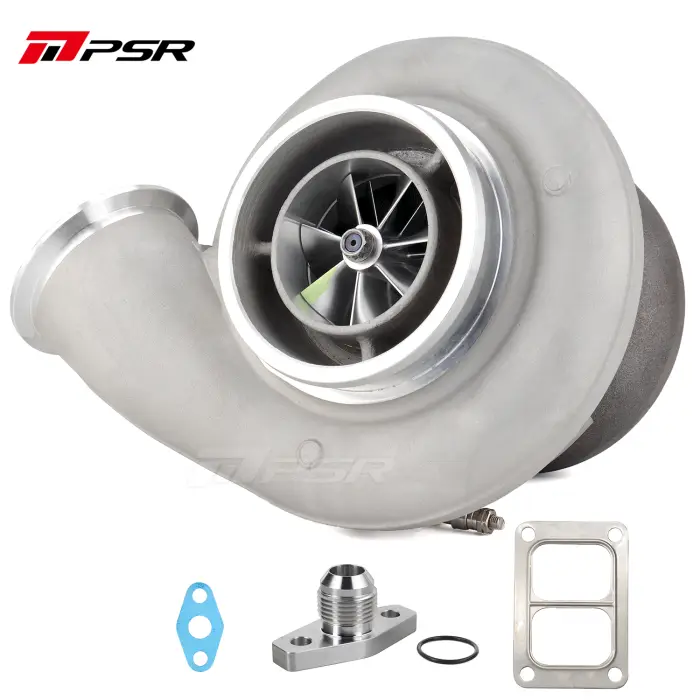

Turbocharger Pulsar PSR 475DG 1.32 T6 Divided Inlet 3/4" Marmon Outlet Ball Bearing
PSR 475DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEEL
- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade?Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Billet Compressor Wheels with Extended Tip Technology
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Compressor Housing: Standard
Turbine Housing: T6 Divided 1.32 A/R
Recommending Engine Displacement: 3.0-8.0L
HP Rating 500-1050
Features:
- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Billet Compressor Wheels with Extended Tip Technology
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details:
- Compressor Wheel: 75*101mm 7+7 Blade
- Compressor Inlet: 5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Wheel: 96*88mm 9 Blade
- Turbine Housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 in Option
- Turbine Housing Inlet & Outlet: T4 Divided Inlet, V-band Outlet; T6 Divided Inlet, 3/4 Marmon Outlet
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
* V-band Flange Kits are available:
- TRB. Outlet 4” Flange & Clamp Kit (164340001)
- TRB. Outlet 5” Flange & Clamp Kit (164340002)
- COMP. Outlet 3” Flange & Clamp Kit (164340003)
- COMP. Outlet 3.5” Flange & Clamp Kit (164340004)
- COMP. Outlet 4” Flange & Clamp Kit (164340005)
